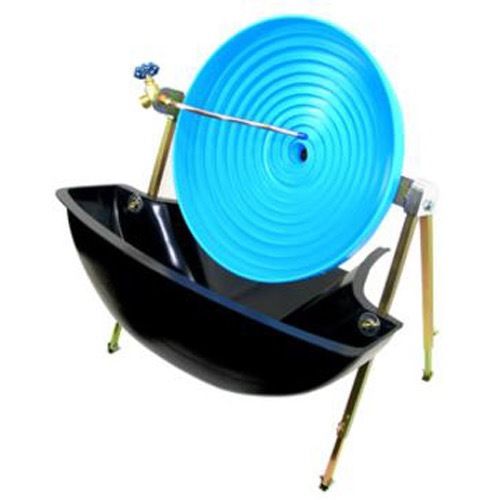

Gold Genie Miner Spiral Gold Panning Prospecting Equipment

Product Code: 6669

Availability:Out of stock

Gold Genie manufactures three different quality spiral recovery systems in their Oregon facility and provides a 5 year factory warranty with a 1 year warranty on the pump and motor. All three are designed to recirculate water with the 12 volt pump which is provided.

The Miner Model is designed for high volume applications with adjustable height frame and a plastic skirt which directs all the waste material to the rear.


18 inch blue spiral pan

All Gold Genie spiral gold wheels have a quality 18 inch blue spiral pan for easy observation of both your gold and black sand. The pan is injection molded from polypropylene plastic. The injection molding under heat and pressure assures an exact copy of the mold with sharp definition of the ridges in the pan which are critical for gold recovery. The deep cut spirals with sharp edges allows the genie spiral wheel to work wet or dry.


The controls for both the volume of water on the spray bar and the critical angle of the pan are designed to be easily and accurately adjusted

Heavy duty 12 volt dc motor

The heavy duty 12 volt dc motor has a 2 speed switching system. The low speed is about 15 rpms and the high speed is about 22 rpms. The switch allows high speed, low speed and center off. A separate switch is provided for the 12 volt dc water pump so the units can operate with or without water. The motor and pump have a total current draw of less than 4 amps.

The gold and other values are collected on the back side of the pan in a high capacity 10 1/2 inch gold pan. The fitting in the center of the pan that the gold travels through is made of high quality stainless steel so that the unites can be used for amalgamation. The frames are all made from anodized steel for years of attractive service.

Extract Gold From Black Sand Concentrates

Faster, Better, and Less Expensively

If you are not using the Gold Genie spiral wheel panner, chances are you may be wasting valuable time and precious gold too. Hand panning is extremely slow, backbreaking, and you could be losing up to 50% of your gold. Other spiral panning wheels just aren't as effective.

Efficiency beyond Compare

Gold Genie is the only automatic panner that consistently and effectively recovers 95% of the gold in concentrates down to 400 mesh. Its ability to extract all grades of gold… even flour gold, beach sand gold, and gold from impact mills… will end your frustrations and give you confidence you’re doing the best job possible. The continuous running action of Gold Genie allows you to extract the full potential of your claim in less time. It’s so effective you could process up to 100 lbs. of super dense black magnetic sands in an hour.

Exclusive Bowl Design

The key to any spiral wheel panner’s effectiveness is in its bowl. When you have a Gold Genie you have the only spiral panner with the exclusive patented "Poly G-2 Bowl" with double angle progressive riffles. The "Poly G-2 Bowl" has superior one-piece design - no inserts or seams to trap valuable gold particles. It easily outperforms other bowls and if you don’t believe it, try it! It will extract gold from tailings of other machines… you'll be amazed!


Using the Gold Genie allows you to spend more time mining while others are fumbling with antiquated equipment. Gold Genie is portable. It only weighs 25 lbs., sets up in a few minutes, and even fits in the trunk of a compact car. You don’t need to be near a continuous water source because Gold Genie can be completely self contained with only 3 gallons of water in which it recycles. (Gold Genie recreational model only). Gold Genie efficiently runs off a 12 volt car battery continuously for approximately 6-8 hours.

Easy to Operate

The average prospector was in mind when the Gold Genie was designed. It’s most effective, but it's also easy to run. Adjusting water flow and wheel angle is a snap. Gold Genie spiral wheels are super easy even for beginners.

Source Of Satisfaction You'll feel pleasure in owning a Gold Genie, You'll join thousands of other owners around the world who are successfully using this superior gold panning machine. It’s the only compact spiral panner with so many features. If you are going to put out the time, effort and sweat why not use the best!

For Professional Miners

Your livelihood depends on your ability to process your concentrates quickly and efficiently, and make the most of the short mining season.

For Weekend Miners

Make the most profit with your limited time. Don’t sell your work short. Get all the Gold Genie advantages, all for less than what you would expect to pay. Now you must ask yourself, "Can I afford not to have a Gold Genie?"

5 Year Limited Warranty

The Gold Genie Spiral Gold Wheels are warranted to be free of (non cosmetic) defects in manufacturing for a period of 5 years for the original purchaser. The warranty on the pumps is 12 months.
