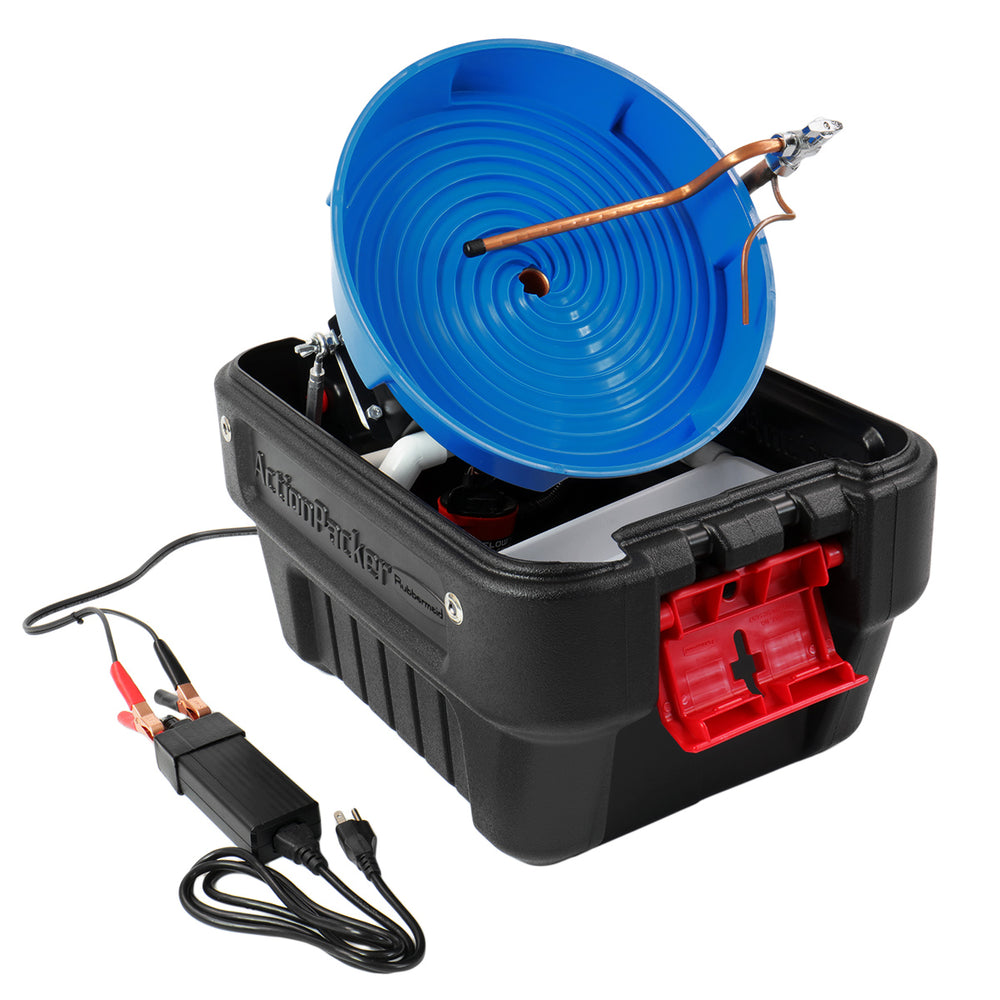

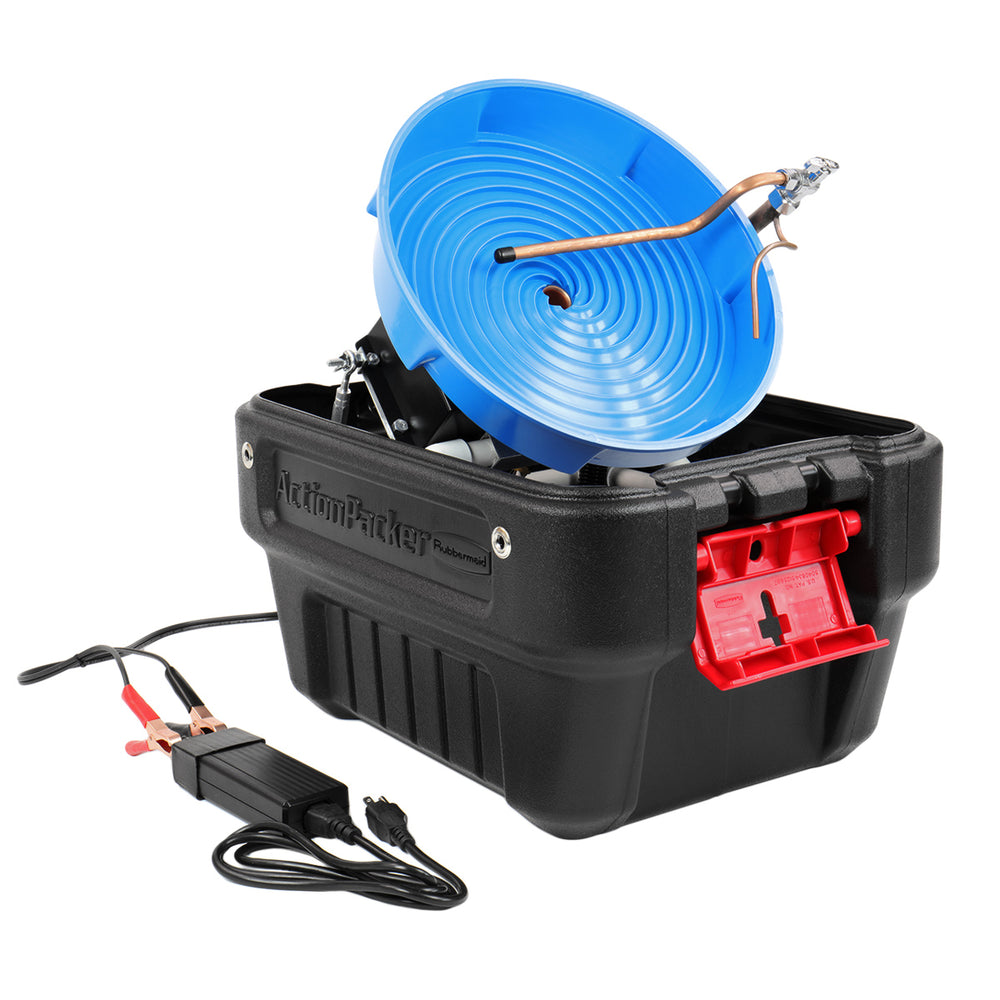

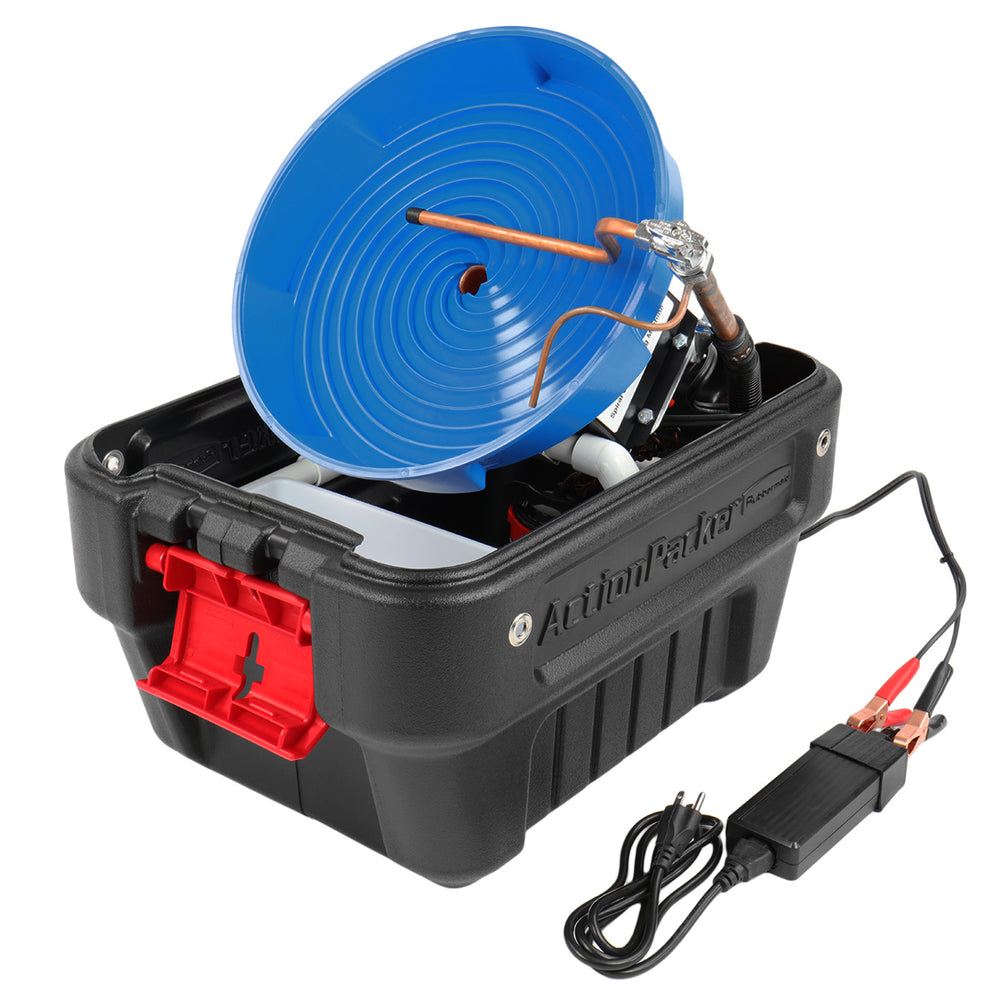

Gold Miner Advanced Spiral Wheel Gold Panning Machine & Power Supply

Product Code: TGP-001_CM-015

Availability:Out of stock

Recover more gold with the Gold Miner Gold Panning Machine!

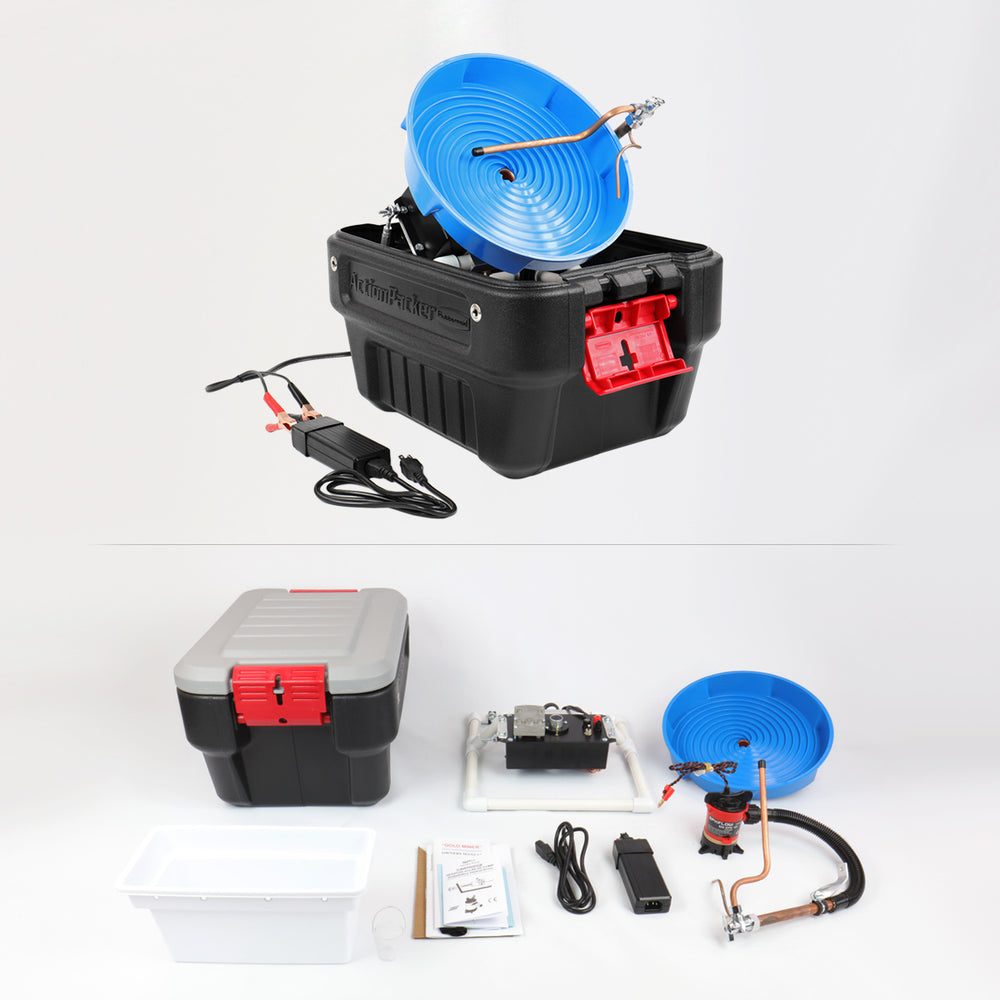

  • 13" Spiral Wheel
  • Pump and Spray Bar Assembly
  • Catch Cup for Gold
  • Drive Unit with Frame
  • Tailings Container
  • Pump Filter
  • Carrying Case with Cover
  • 5 Year Warranty
  • 120v 3.5 amp Wall Outlet Power Supply

The legendary Gold Miner Spiral Gold Panning Machine has been a prospector's favorite since 1994.

This unit is loaded with features to make your panning experience not only fun, but potentially profitable because the Gold Miner will get the smallest speck of gold out of even the most stubborn black sands!

Just connect your 12 volt DC power source or battery (not included) and you are ready to prospect!

Take your Gold Miner spiral panning system anywhere!

Weighs about 10 pounds-- including the self-contained carrying case.

Dimensions of the carrying case are 20 inches long, 15 inches wide, and 13 inches high.

The spiral pan is 13 inches in diameter.

All components are designed for rugged outdoor use with no lubrication or maintenance.

Runs on 12 volts DC.


  • "Micro adjuster" for fine tuning the pan angle, even while it's running, which is a real time saver
  • 7 spiral leads running at approximately 12 revolutions per minute, optimized for the highest recovery rate
  • Half inch recess at the beginning of each spiral rolls (agitates) your concentrates to settle the gold into the spirals quicker
  • Gold spirals up to the center of the pan and drops into a catch cup on the back, cleanly separating the gold from the black sand
  • No need to hand "splash" the black sand out of a center disk like you must do on some of the more expensive machines
  • Comes with an injection molded pan with deep and sharp spirals
  • Delrin bushings for years of care-free use
  • 4 vent holes in case will help dissipate condensation caused by overlooked moisture when the Gold Miner is stored away
  • Highly efficient motor for longer battery life
  • Weighs about 10 pounds
  • Rugged direct drive gear box molded out of thick ABS plastic for years of durability
  • Angle template provided to take the guess work out of setting your starting pan pitch
  • Heavy duty Rubbermaid Action Packer carrying case with lid
  • Spray bar system with rugged 500 GPH Mayfair pump
  • Recirculates 3 gallons of water for all day use
  • 500 GPH re-circulating pump capable of processing an average of 60 pounds of concentrate per hour
  • Very simple to use, sets up in minutes and folds up and stores in carrying case
  • 5 year manufacturer warranty


If within 90 days from the original date of purchase, your GOLD MINER Spiral Gold Panning Machine fails due to defects in either material or workmanship without any visible signs of abuse or neglect, Gold Leisure Products will repair or replace at it's option, all necessary parts without charge for parts OR labor for 90 days.

From 90 days to 5 years, a charge of $15.00 is required to cover the cost of return shipping.

Gold Leisure Products is committed to the quality and craftsmanship of the Gold Miner and is proud to offer the best spiral gold panning machine on the market.
