Minelab Excalibur II 1000 Metal Detector

Product Code: 3303-0124

Availability:In stock

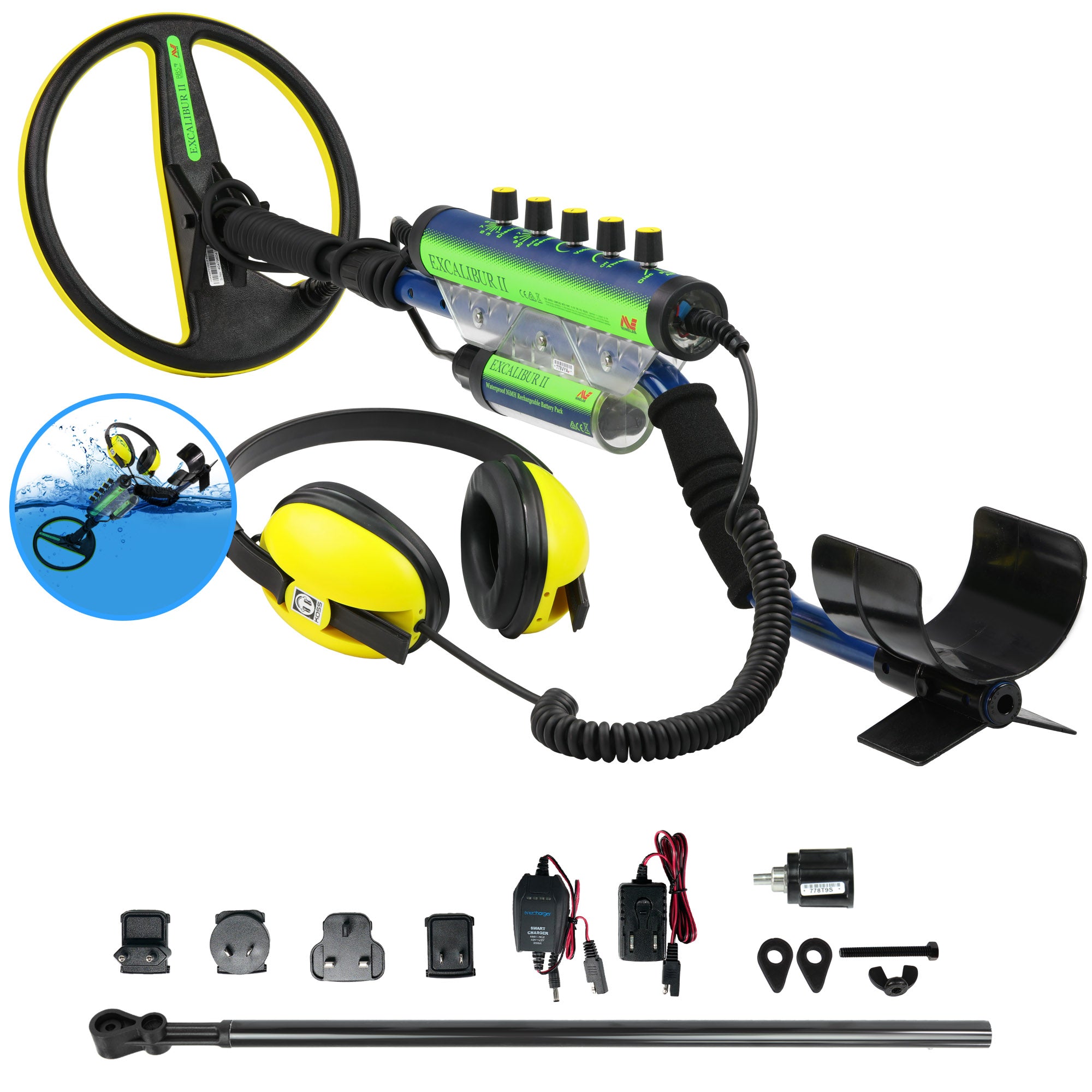

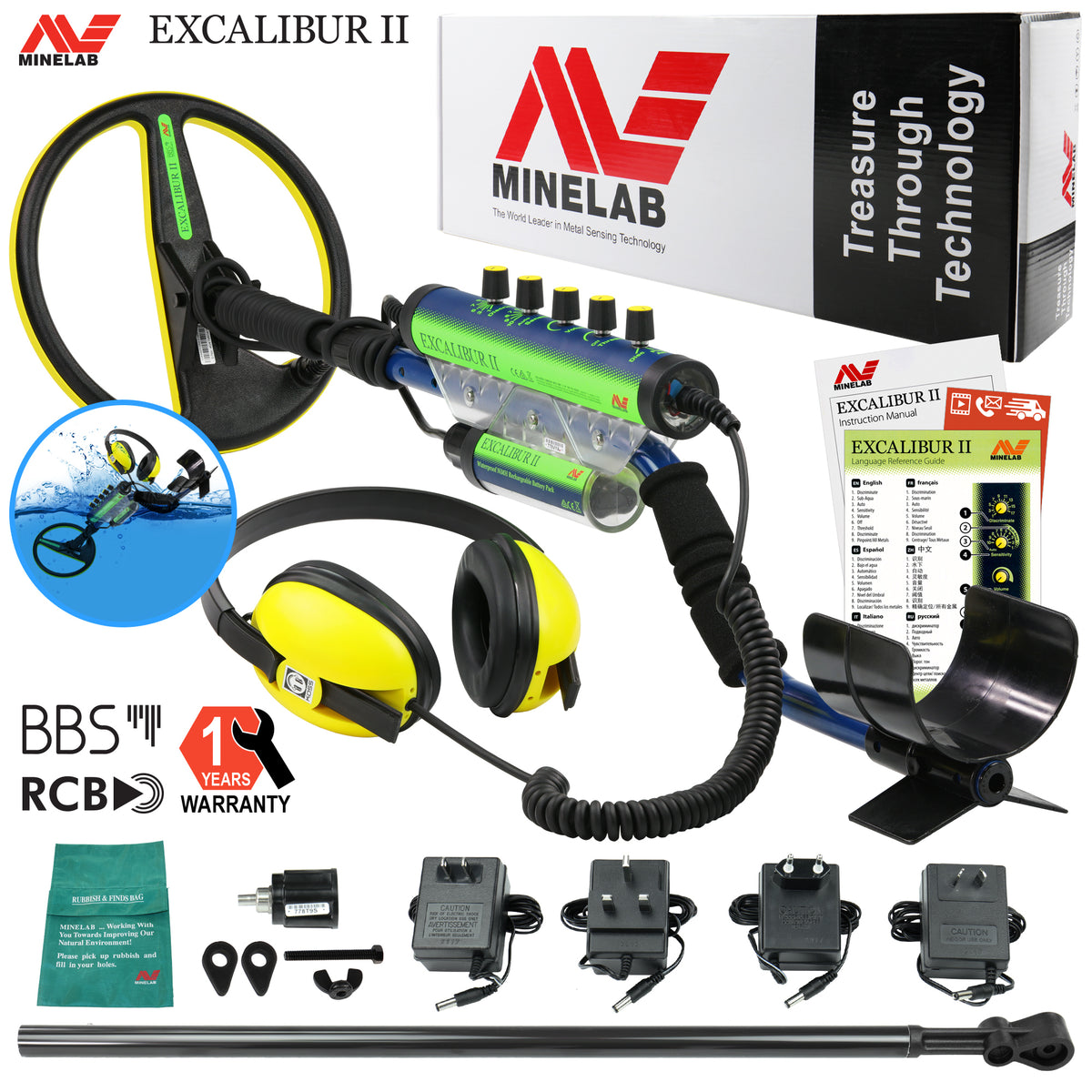

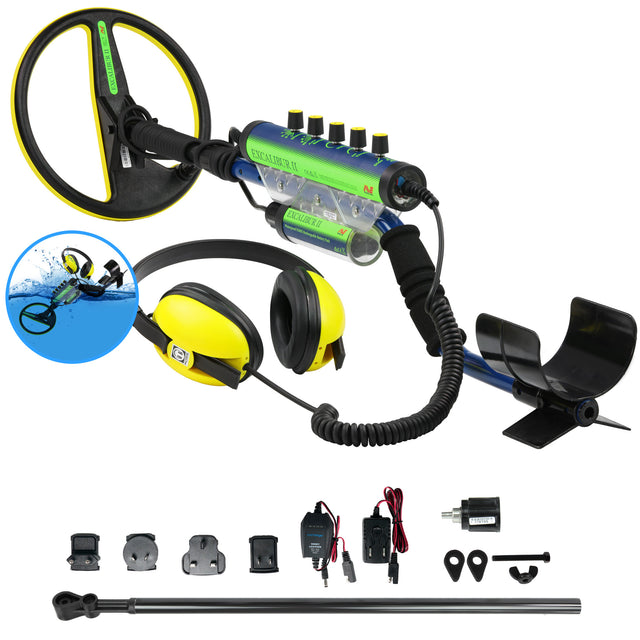

Minelab Excalibur II 1000 Metal Detector Recovery Bundle with 10" Submersible Search Coil, coil cover, Deluxe Minelab Carry Bag, NiMH Rechargeable battery, 110v Wall Charger, Short Shaft Diving Rod.

The Excalibur II 1000 features BBS (Broad Band Spectrum) 17 frequency technology, superior ground rejecting technology, High Visibility (Hi-Vis) fluorescent bodywork & skid plate, and a Slimline coil for reduced weight and improved balance.

Minelab Excalibur II 1000 Metal Detector includes the following items:

  • 10" Submersible Search Coil
  • NiMH Battery Pod
  • Recharge Adapter
  • 110v Wall Charger

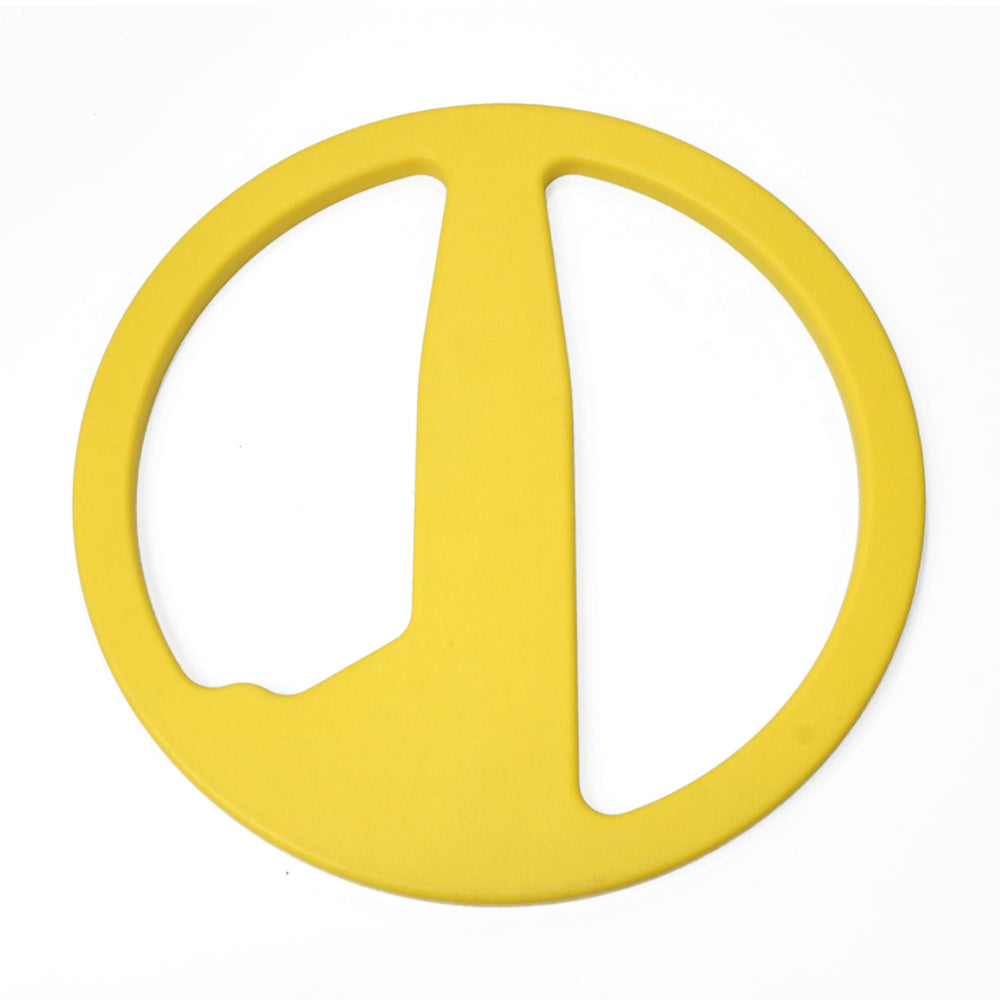

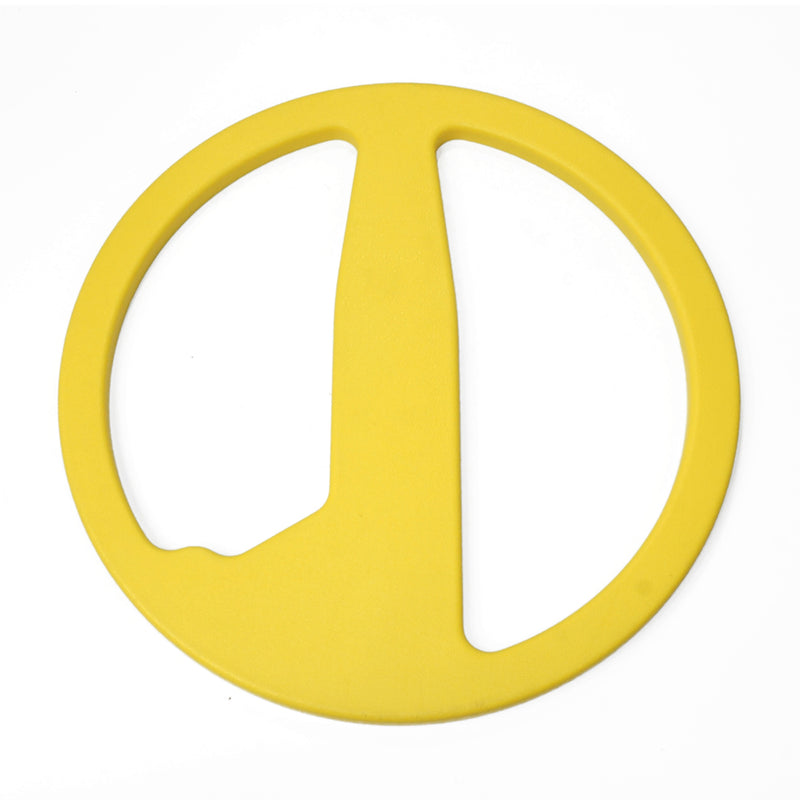

  • 10" Search Coil Cover
  • Short Shaft Diving Rod
  • Instruction Manual
  • 12 Month Factory Warranty

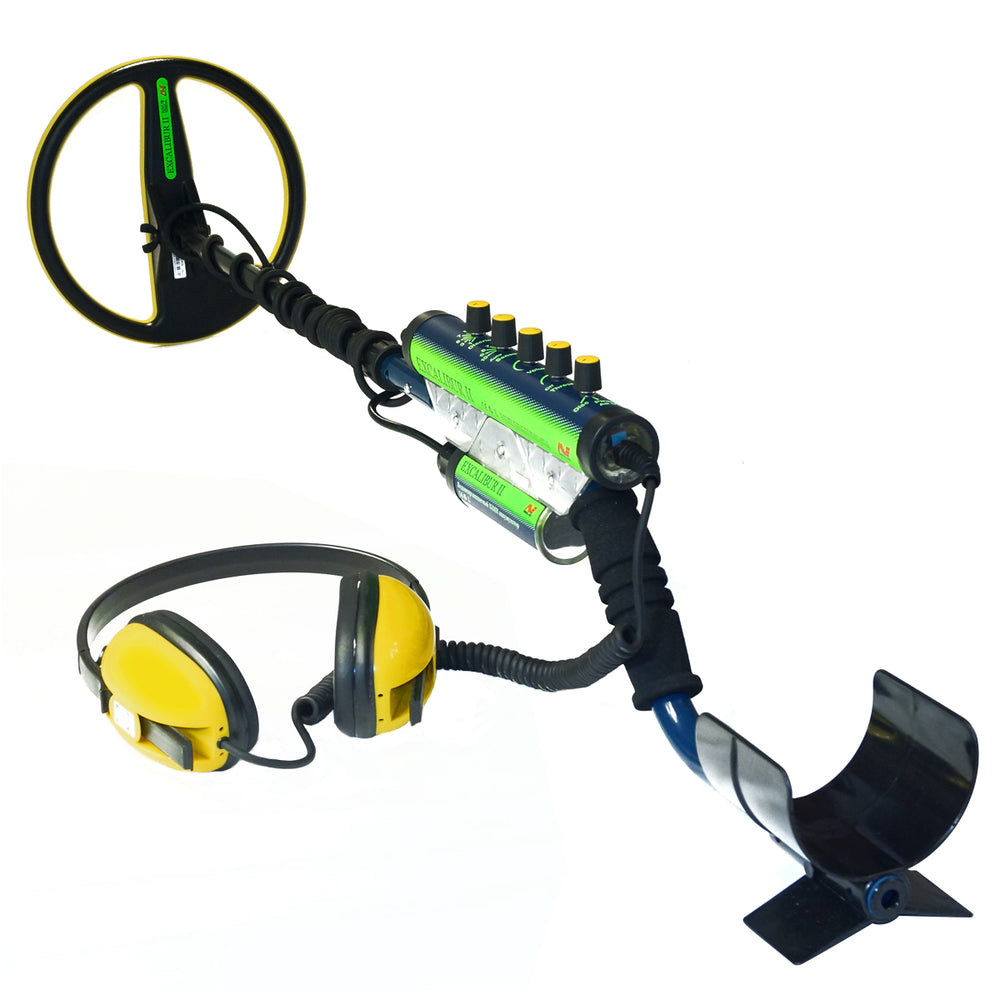

Minelab Excalibur II 1000

The World’s Best Water Detector!

Minelab’s unique Broad Band Spectrum (BBS) technology, combined with superior ground rejecting technology, makes the Excalibur II the ideal underwater machine.

The unique design of the Minelab Excalibur II allows you to use it as effectively in or out of the water - this amphibious machine can move seamlessly from land, beach and wet sand conditions to underwater depths of up to 200ft (66m).

Thanks to a unique method of ground cancelling never again will you get false signals from detecting in salt water. Enjoy the simple yet effective discrimination and be surprised at the sensitivity and depth you uncover targets from.

Whether you are a long time diver or a casual beachcomber the Excalibur II is unbeatable for working the beach, wading in the shallows or diving a wreck at 200 feet for treasures.


  • BBS 17 frequency technology (1.5kHz 25.5kHz).
  • RCB amplifies weak target signals inside the coil, reducing noise and boosting faint, deep objects.
  • High Visibility (Hi-Vis) fluorescent bodywork.
  • Slimline coil (8” or 10” option) for reduced weight and improved balance.
  • NiMH Rechargeable battery pack for operation up to 12 hours.
  • Hi-Vis Skid plate.
  • Side-mount shaft for shallow and surf-wading (available as an optional accessory).


Application Coin, Relic, Jewelery, Beach & Dive
Technology BBS
Frequency/Transmission Multiple frequencies: 1.5, 3, 4.5,...25.5kHz)
Coil (standard) Choice of 8" or 10" round Double-D hardwired coil.
Audio Output Headphones (hardwired).
Headphones Supplied Koss 8 ohm headphones (hardwired).
Detect Modes Discriminate or All-Metal (Pinpoint).
Discrimination Variable Discrimination (adjustable turn control) & All Metal (Pinpoint).
Ground Balance Automatic ground rejection.
Pinpoint Pinpoint mode.
Sensitivity Adjust Auto & manual (adjustable turn control).
Threshold Adjustable turn contol.
Target Volume Adjust Adjustable turn control.

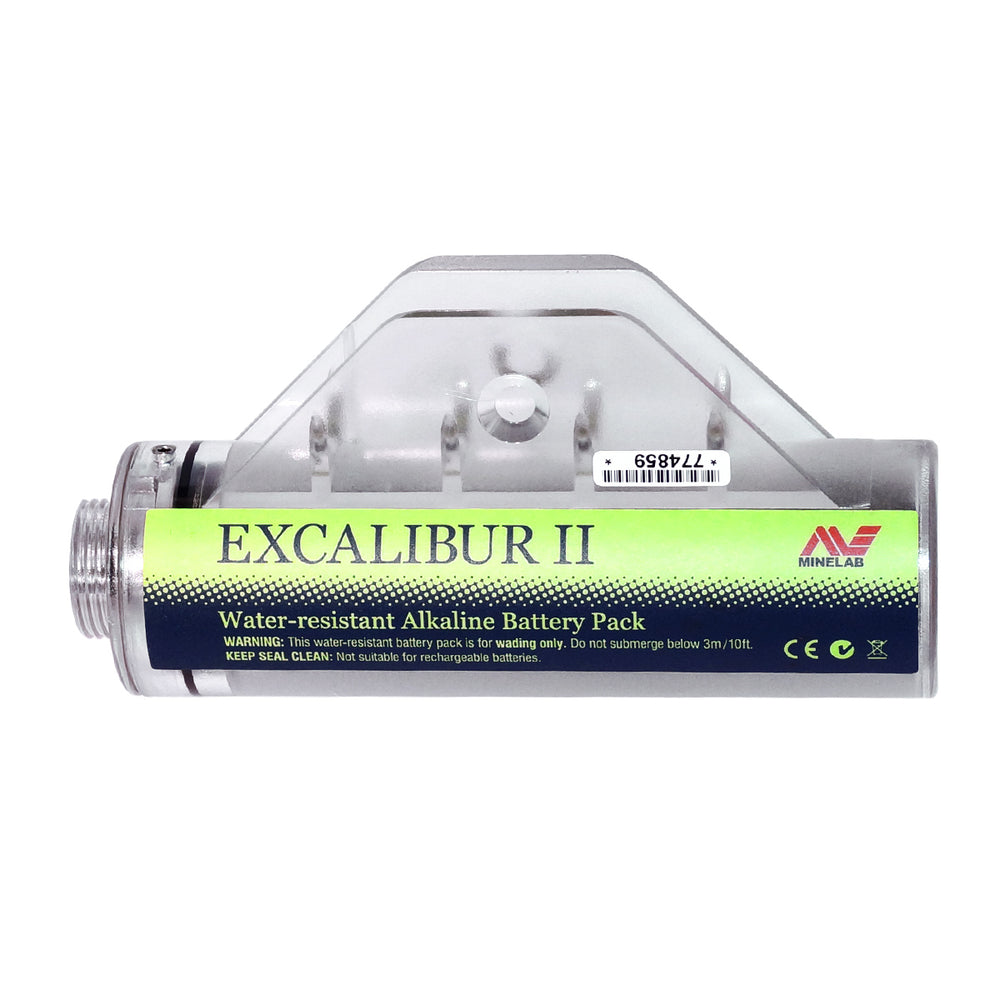

Battery NiMH battery pack 13V 1000 mAh (14-19 hours). Supplied with mains charger, alkaline battery optional accessory.
Low battery alert Audio alert.
Length Standard shaft 1140mm - 1220mm (45" - 48"); Dive shaft 820mm - 910mm (32" - 36").
Weight 8" Coil 2.1kg (4.6lbs) or 10" coil 2.3kg (5.1lbs) (inc NiMH battery).
Warranty 1 year control box & coil.
