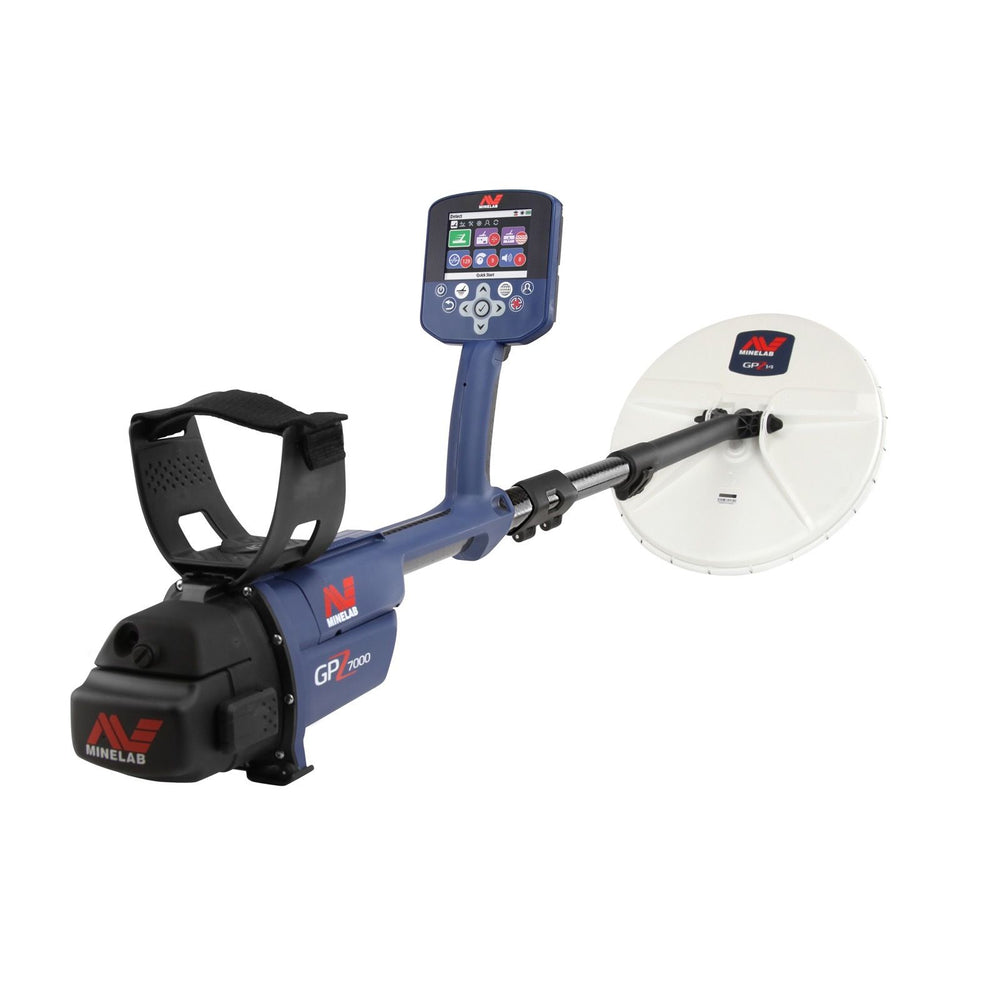

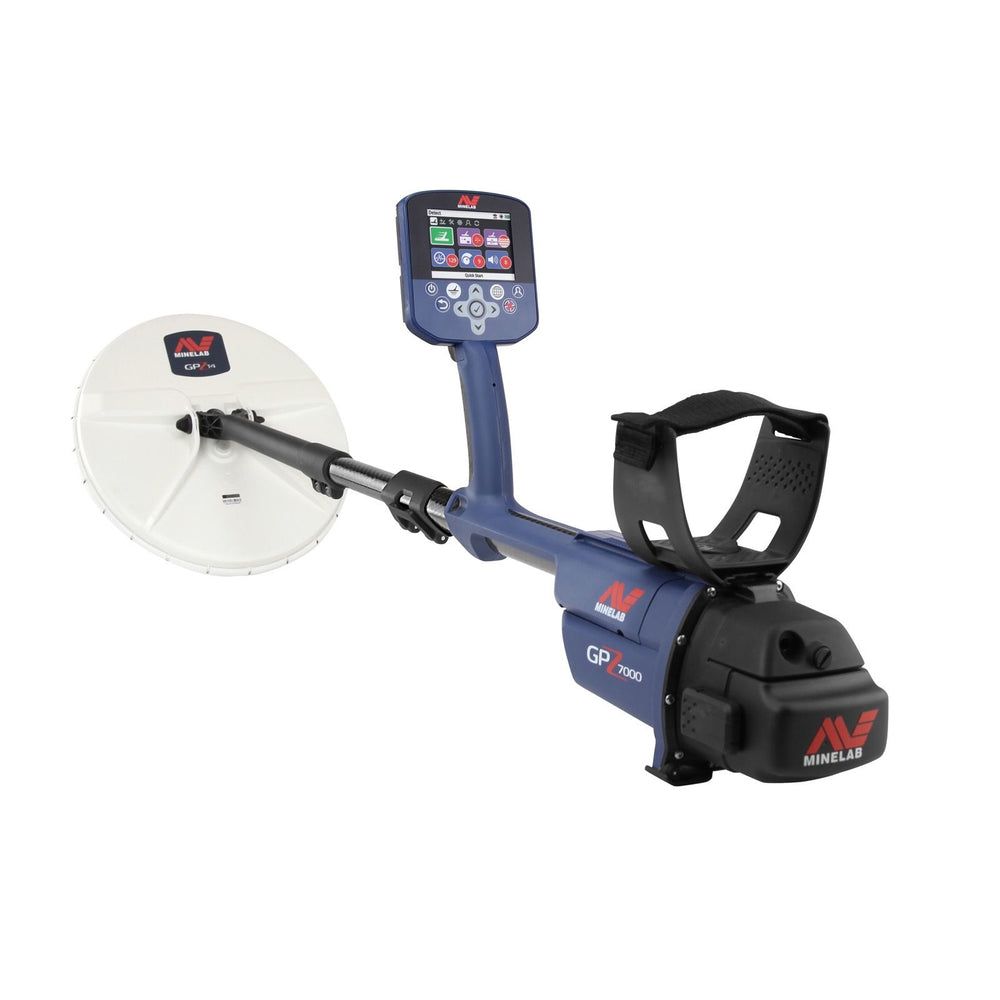

Minelab GPZ 7000 All Terrain Gold Metal Detector

Product Code: 3301-0001

Availability:In stock

Minelab GPZ 7000 All Terrain Gold Metal Detector with Zero Voltage Transmission

The GPZ 7000 is the future of gold detection. This unbeatable detector will give you extreme gold depth (up to 40%* deeper than the GPX series), for the ultimate gold prospecting performance in all ground conditions.

The GPZ 7000 is the best gold prospecting detector on the market and is capable of finding gold significantly deeper than ANY other metal detector in ALL ground conditions!

GPZ 7000 is our new flagship gold detector, the GPZ 7000. Equipped with exclusive Zero Voltage Transmission (ZVT) technology, developed by Bruce Candy, and state-of-the-art features, the GPZ 7000 offers the deepest ground penetration and represents the most significant advancement in gold detecting technologies in years.

This revolutionary gold detector will discover the deepest gold in mineralised ground and has the highest sensitivity available to detect even the smallest traces of gold. LOOK NO FURTHER!

NEW GOLD TECHNOLOGY

A quantum leap in gold performance with breakthrough new technology from Bruce Candy.

ZVT technology goes to the NEXT LEVEL for all serious gold prospectors, providing substantially improved depth. No longer will you be limited to using either sine wave continuous VLF transmission detectors, that struggle in mineralised ground, or square wave PI transmission detectors, that can be insensitive to varying gold sizes and compositions.

“This revolutionary new ZVT technology far surpasses GPX detectors for detecting deep large nuggets AND finding gold at any depth. The GPZ 7000 will open up the gold fields again.”

Bruce Candy, GPZ Inventor

MAXIMUM GOLD RECOVERY

With extreme depth and maximum sensitivity, the GPZ 7000 outperforms both the SDC 2300 and the GPX 5000.

“The GPZ 7000 doesn’t make gold, but sometimes it seems like it can!”

“I managed to find some decent gold at depth, including a 2-1/2 ounce nugget at over 2-1/2 feet. A GPX 5000 with a 20-inch Monoloop couldn’t even touch it.”

“I revisited an old rich patch today where previously I couldn’t work the ground because of noise and instability. With the GPZ 7000 the difference was staggering. The gold started to come in nice and steady with a haul of 30 grams at the end of the session. The biggest nugget weighed in at 12 grams and was 17 inches deep.”

Jonathan Porter, Australia

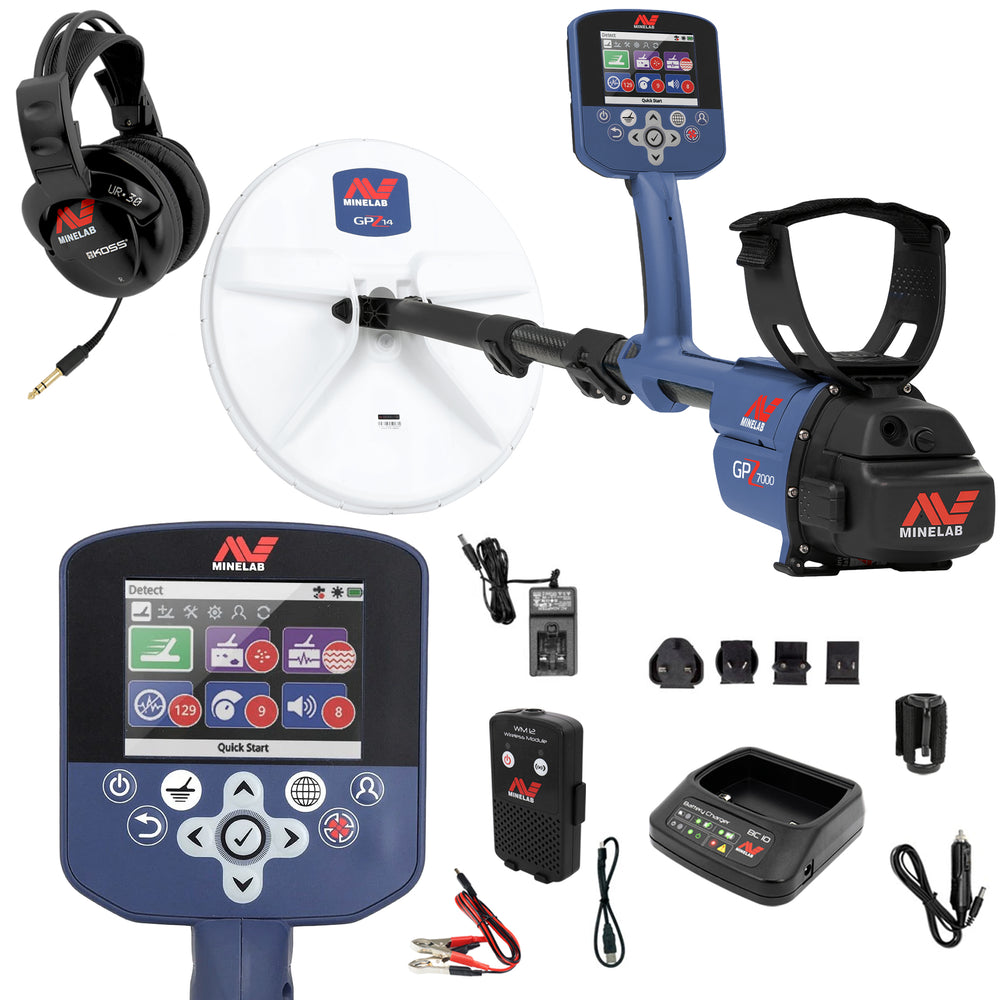

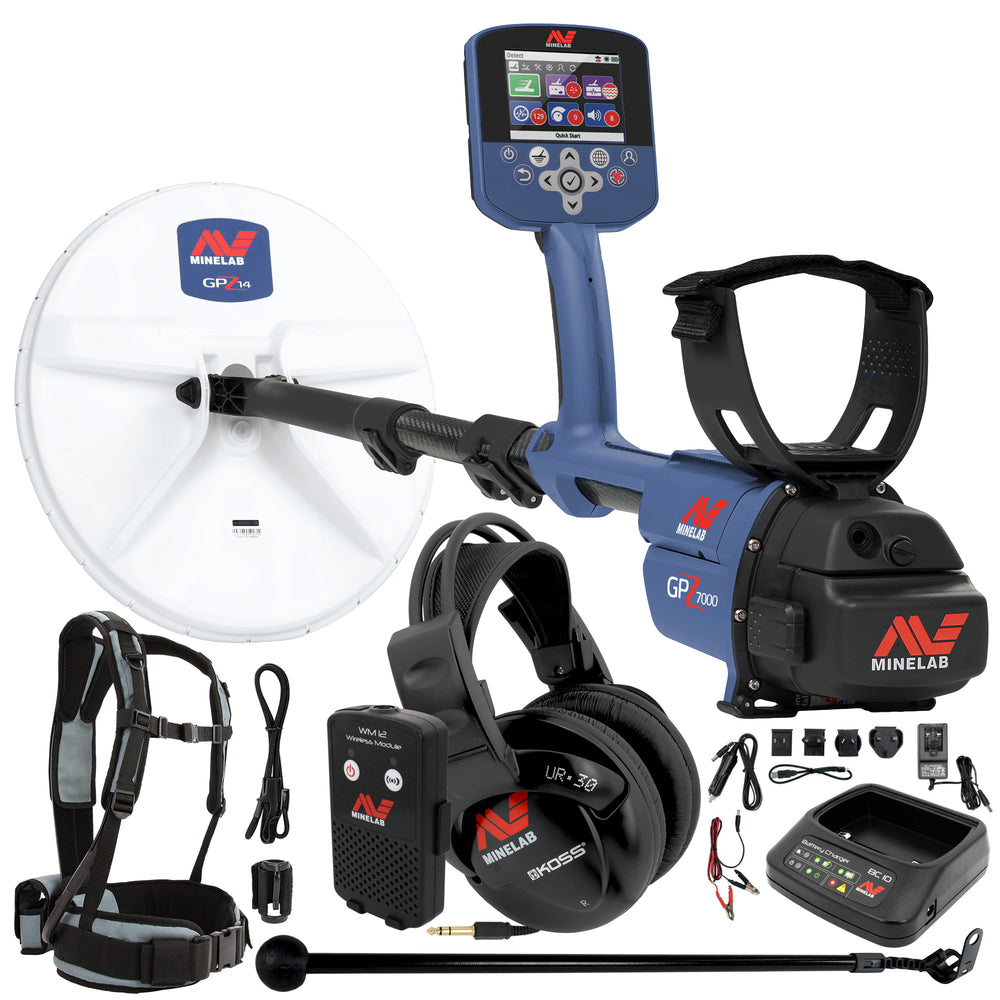

Includes

  • 14″ x 13″ Super‑D Configuration Coil

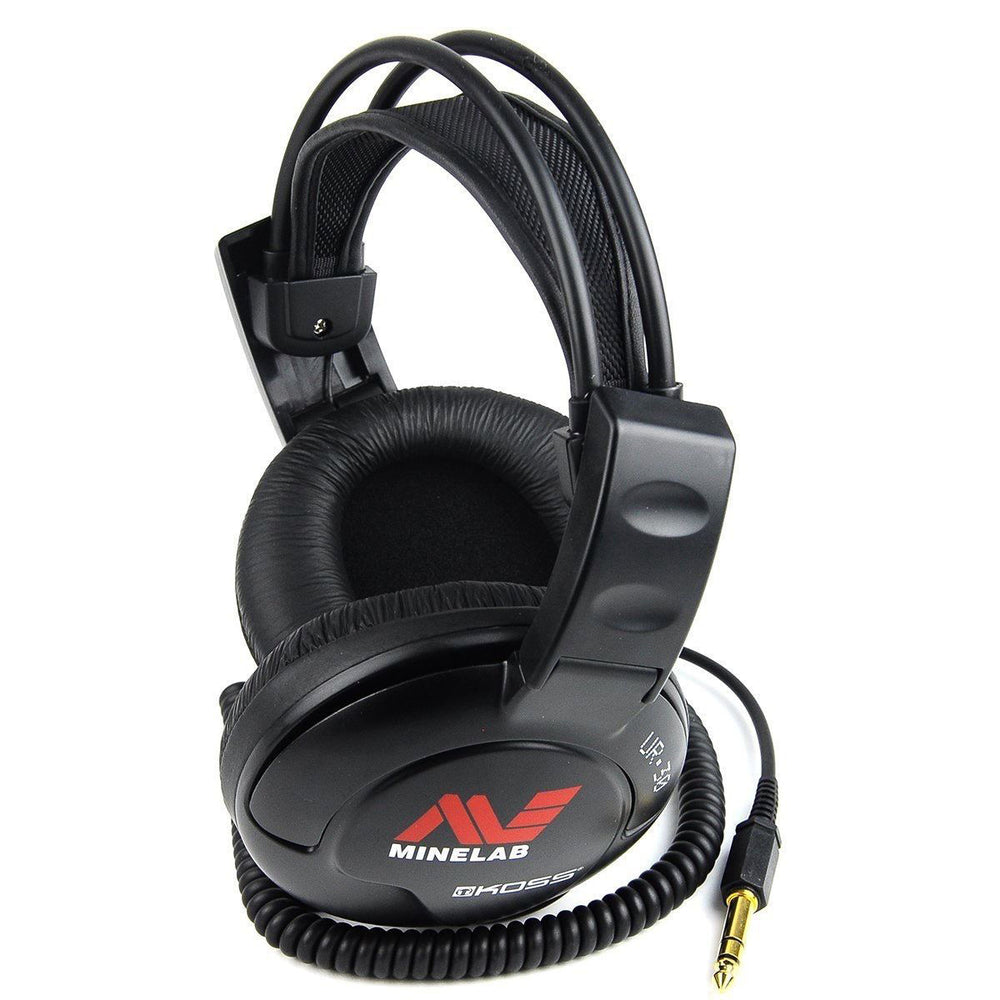

  • Koss Headphones
  • WM10 Wireless Headphone Module

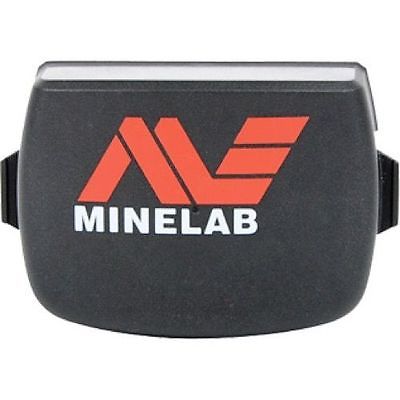

  • Minelab Li-ion Rechargeable Battery Pack

Features

  • Extreme Gold Depth: So how deep can you go? Well, up to 40%* deeper than the GPX series. Old gold fields are new again, thanks to the revolutionary new ZVT technology. Minelab takes you much deeper than ever before.
  • Maximum Gold Sensitivity: The incredible sensitivity of the GPZ 7000 with the Super‑D coil gives you the ultimate advantage in the field. Find gold others have missed, from sub-gram gold through to those elusive ‘retirement nuggets’ still out there.
  • Precision Ground Balance: Most gold is buried in the mineralised ‘difficult’ ground that many detectors can’t cope with. The GPZ 7000 accurately ‘balances’ and automatically ‘tracks’ to even the most severe ground conditions, with ease.
  • Enhanced Noise Immunity: The outstanding noise immunity of the GPZ 7000 enables very smooth and quiet detecting. With 256 Noise Cancel channels, the GPZ 7000 picks up less atmospheric noise. Listen to the gold, not the noise interference.
  • Simple Menu System: The easy-to-use Menu Pages group similar functions together under Detect and Map sections, with all settings quickly accessible. Use the Guide Sequences to get started. You don’t need to be an expert to find gold.
  • Wireless Audio Freedom: Detect without your headphones attached to the detector. With the WM 12 Wireless Module you have the choice of using the in-built speaker, the supplied headphones, or your favourite headphones.
  • GPS Locating and PC Mapping: See your location and log gold finds as you detect. With the built-in GPS you’ll efficiently cover more ground and won’t miss a nugget! Record your favourite ‘hot-spots’ by saving data to XChange 2 with Google Maps.
  • Waterproof Coil to 3 ft: The GPZ 14 coil is waterproof and submersible to a depth of 3 ft. You can easily detect rivers and shorelines with no fuss! The weatherproof design of the GPZ 7000 allows you to go detecting in rainy or wet conditions.
  • Zero Voltage Transmission (ZVT): creates ultra‑constant high-power opposite polarity magnetic fields, increasing gold sensitivity. This innovative technology detects gold nuggets at extreme depths.
  • The Super‑D smart coil: consists of a central transmit winding and two outer receive windings. This configuration greatly decreases interference from magnetic soils, reducing ground noise.
  • GPSi: uses a u‑blox GPS engine to integrate location and time data with detector settings. This creates WayPoint, FindPoint and GeoHunt files to use with XChange 2.
  • Wi‑Stream: uses low-power digital audio transmission to achieve no perceivable audio time lag (<10 ms). This provides reliability and maximum sound quality.

Specifications

Application Gold Prospecting (Waterproof coil to 1m/3ft)
Technology ZVT
Frequency/Transmission Zero Voltage Transmission (ZVT)
Coil (standard) 14" x 13" Super‑D Configuration with skidplate (waterproof to 1 m/3 ft)
Audio Output 6.3 mm (¼") non waterproof socket, Wi‑Stream wireless signal transmission
Headphones Supplied KOSS UR 30 100 ohm with 6.3 mm plug (¼-inch) (non waterproof)

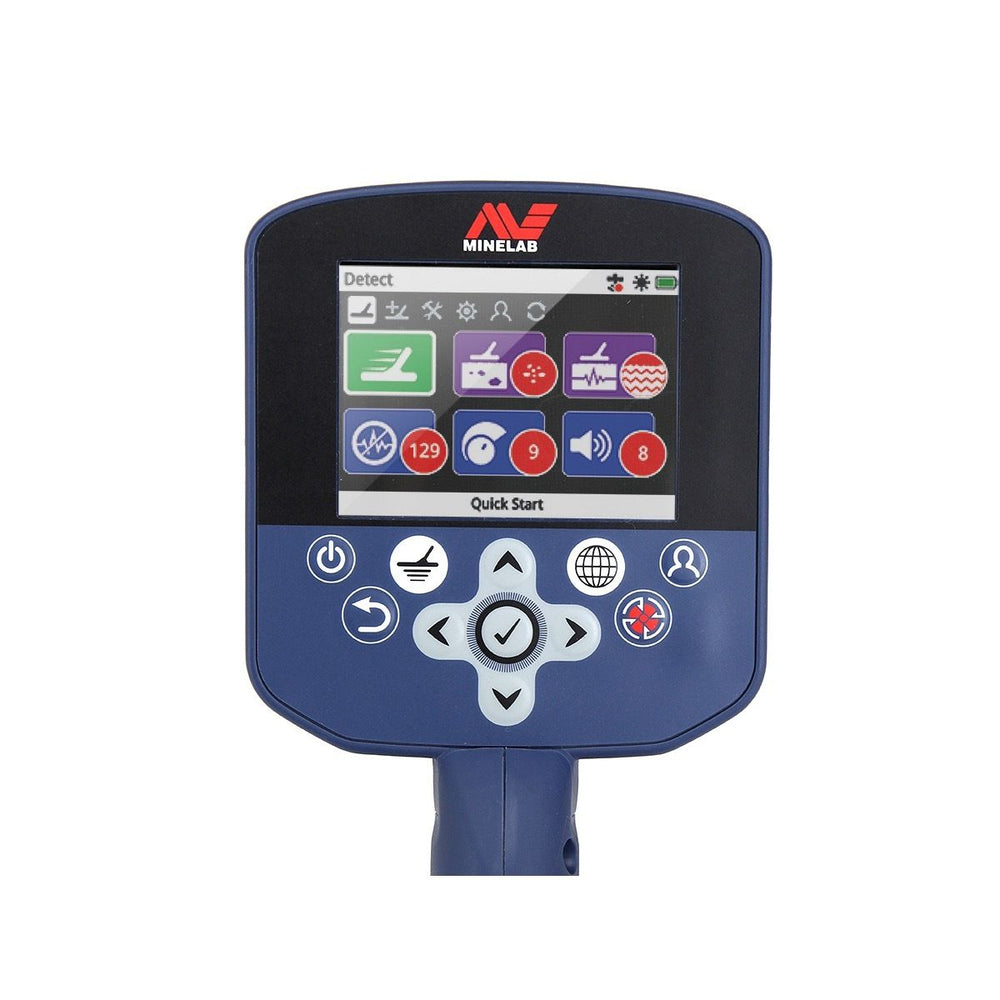

Visual Display Full colour LCD (320 x 240 pixels)
Backlight Yes
USB Connectivity USB interface for XChange 2 PC software
Memory Yes
Depth Indication -
Detect Modes Gold Mode (High Yield, General, Extra Deep) Ground Type (Normal, Difficult, Severe)
Discrimination All Metal
Timings -
Audio tone 1-100
Audio Type -
Ground Balance Auto and Manual (Quick‑Trak trigger button)
Ground Balance Type Auto and Manual (Quick‑Trak trigger button)
Trash Density -
Pinpoint -
Sensitivity Adjust Level (1-20)
Tune / Noise Cancel Auto and Manual (256 channels)
Threshold Level (1-50) Pitch (1-100)
Target Volume Adjust Range (1-20) Limit (1-20)
Battery Li-Ion Rechargeable Pack (7.2V DC, 72Wh) Included
Low battery alert Yes
Length Collapsed: 1170 mm (46.1”) Laid flat, packed position: 1304 mm (51.3”) Extended: 1526 mm (60.1”) Laid flat, packed position: 1651 mm (65.0”)
Weight 3.32 kg (7.32 lb) (Including GPZ 14 coil, skidplate and 72Wh battery)
Warranty 3 years control box & coil

* When compared to the average performance of the GPX 5000 in typical environments. Actual performance depends on prevailing conditions. The information displayed in this graph is an out-of-the-box comparison, is indicative only, and is based on the results of laboratory measurements and field testing undertaken by, and for, Minelab using a GPX 5000 with the 11" Monoloop coil, an SDC 2300 with attached 8" Monoloop coil and a GPZ 7000 with the GPZ 14 Super-D coil. The nominal performance for GPX 5000 with the 11" Monoloop coil is used as the baseline for comparison of the other detectors. The performance of the GPX 5000 on larger nuggets with a larger comparable accessory 15" x 12" Monoloop coil is also depicted. Note that a GPZ 7000 with a GPZ 14 coil will also typically further outperform a GPX 5000 with larger accessory coils on small and medium nuggets.

Please be aware that the depicted results give a relative and realistic comparison of the three detectors for typical goldfields conditions for detecting the weight ranges of gold shown, but do not represent performance under all conditions, and should not be regarded as conclusive. Minelab does not warrant or represent that the performance levels depicted will actually be achieved, as performance of the three detectors will vary depending upon prevailing conditions. Relevant factors in detector performance include, but are not limited to, detector settings, coil size and configuration, ground type, mineralisation levels and type, electromagnetic interference, gold nugget size, shape and composition, and operator skill level.
