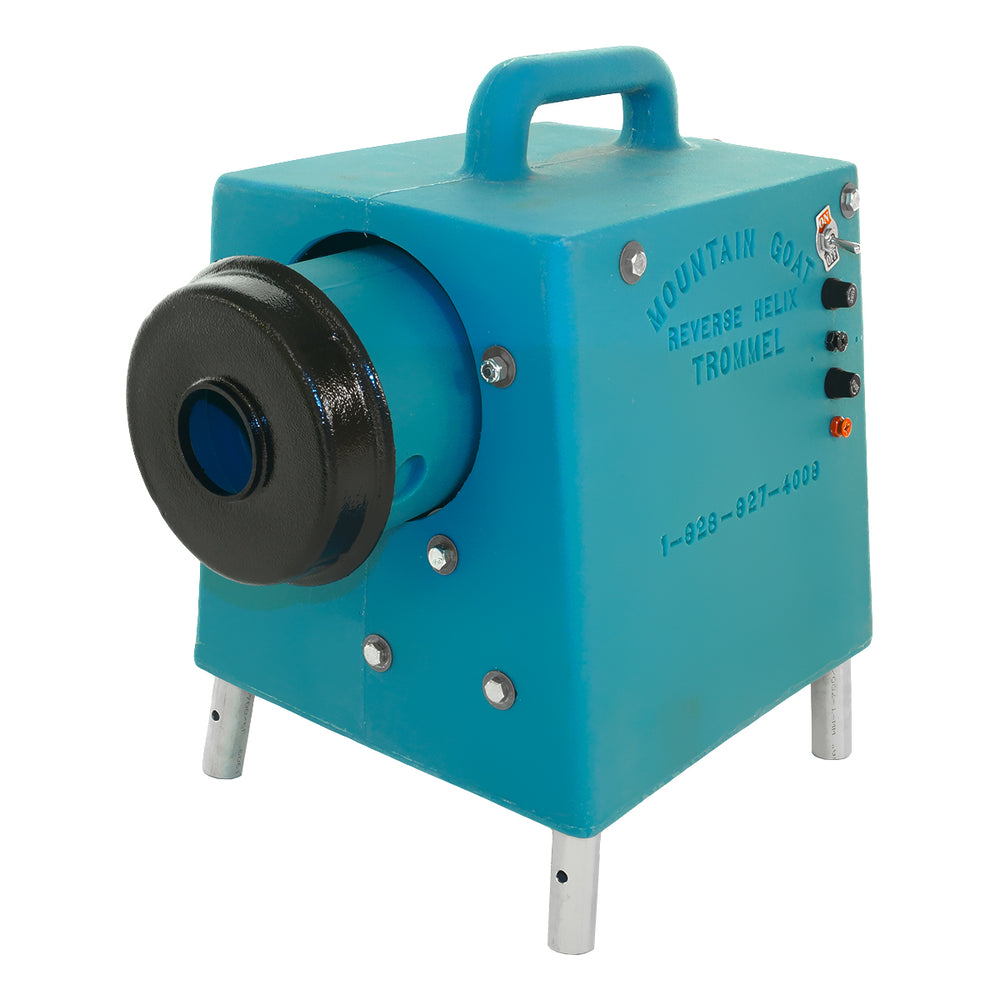

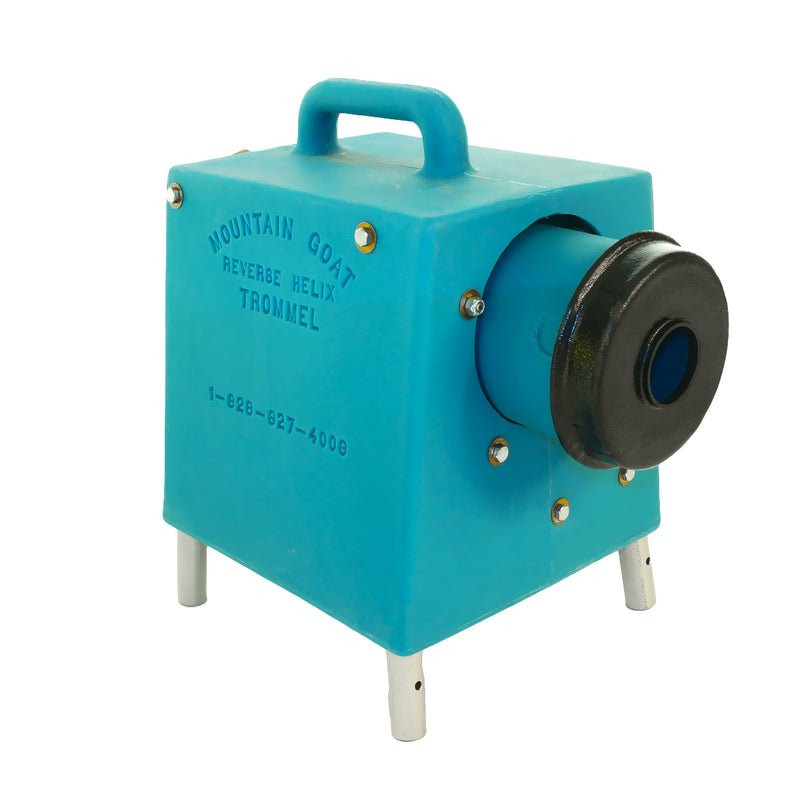

The Mountain Goat Trommel is a reverse helix system built on the same principle as the huge mining trommels used by large mining companies all over the world, but this is light and portable.
The reverse helix system came from the Archimedes Screw Pump invented over 2,000 years ago by the mathematician Archimedes.
The Mountain Goat is efficient because the spiral riffles inside of the tube turn and bring the heavy materials up to the high end of the tube while allowing the lighter materials to flow out of the back of the tube as tailings. This system makes the trommel completely self-cleaning, which eliminates the need to break down for clean-up as is necessary with sluice box type equipment.The spiral riffles in the trommel tube are ¼ inch deep and spaced ¾ inch apart. We suggested your placer material be screened to ½ inch or less even though rocks as large as ¾ inch will pass through the tube. There is a nugget trap at the low end of the tube which should be checked regularly for nuggets larger than ¼ inch.
The front legs of the trommel are adjustable to increase the pitch but we found that the factory setting is the best for getting fine or flour gold. The factory setting has the front legs about 1 inch longer than the back legs. Tests have shown very little loss of fine gold at this setting when a wetting agent such as Jet Dry is used in the system.
The Mountain Goat can be used in a large tray, such a mortar mixing tub, with about 5 gallons of water which is then recirculated by a 750 gallon per hour pump. It can also be used directly in a stream.
The Mountain Goat Reverse Helix Trommel is the perfect companion to the Desert Fox Automatic Gold Panning Machine as it can directly feed the Desert Fox using the custom designed accessories making you an efficient small mining operation.
Height: 24 inches
Width: 16 inches
Length: 32 inches
Weight: 18 pounds
Barrel: 4 inches
Power Required: 12VDC 17AH
Water Required: 5 gallons
Pump Capacity: 750 Gph
Material Capacity: 2 Yards per Day
The Mountain Goat Trommel is a small version of the reverse helix trommels used by major placer mining companies. Do not confuse it with the gravel pit trommels which are screen type classifiers, not archimedes mining trommels. It can easily be carried up a mountain by one person.
The Mountain Goat can be used in a tub to recirculate the water to operate the machine. That way, the water stays free of leaves, etc. that can plug the pump. A sock slipped over the pump will also keep the spray system from clogging up. Any large tray such as a mortar mixing tub (found at most home improvement stores) can be used with 5 gallons of water which is then recirculated by the 750 gallon per hour pump.
The Trommel can also be used directly in a stream and is a very sturdy machine designed to take a lot of wear and tear!
The controls are conveniently located at the top of the trommel for easy operation.
The Mountain Goat can be set up to feed directly into the Desert Fox Gold Panning Machine to make you a one-man mining operation.
